KH14G PRO | Mini Excavator | 1 Ton | Gas | 14 Series
from $10,900.00
sale

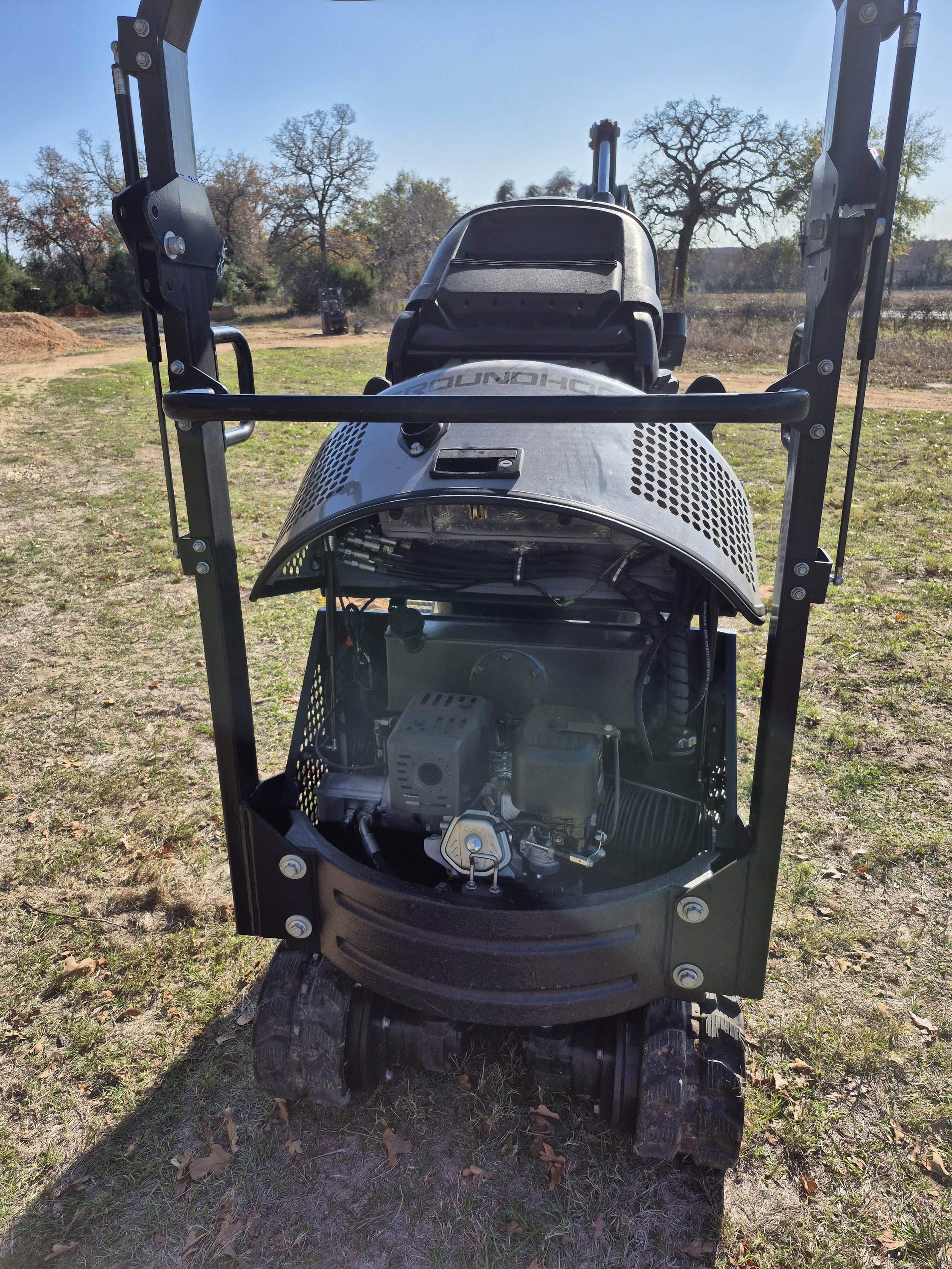

All KH14G models come equipped with a 14 HP Briggs and Stratton XR Professional gas engine.
The KH14G Pro has a 2 post folding ROPS, hydraulic joysticks, double stacked pump, greaseable track tensioner, and the hydraulic lines are run through the boom.
Options:
Quantity:
|
|
| Operating Weight – Rubber Tracks | 2100 lbs (KH14G & KH14G-2) 2200 lbs (KH14G Pro) |
| Operating Weight – Steel Tracks | 2700 lbs (KH14G & KH14G-2) 2800 lbs (KH14G Pro) |
| Engine | Briggs and Stratton |
| Engine HP | 14 HP |
| Bore Stroke | Single cylinder, fan cool |
| Main Pump | G5-6 |
| Travel Speed | 1.5km/h |
| Overall Dimension | 109″ x 37″ x 87″ |
| Machine Width | 36″ |
| Machine Height | 7’4″ |
| Ground Clearance | 6″ |
| Track Length | 48″ |
| Track To Blade | 54″ |
| Track Width | 7″ |
| Track Height | 12.5″ |
| Max Digging Depth | 5’1″ |
| Max Vertical Digging Depth | 54″ |
| Max Digging Height | 103″ |
| Max Dumping Height | 73″ |
| Max Reach | 8’11” |
| Max Digging Radius | 9’3″ |
| Max Upgrade Height of Blade | 13.5″ |
| Max Digging Depth of Blade | 10″ |
